High-performance superhard cutting solutions for angle grinders, masonry saws, and CNC machinery engineered by JIAYAN Superhard Tools.
An authoritative evaluation of macro-economic demand shift, high-torque cordless angle grinder proliferation, and raw material logistics in superhard abrasives.
The global diamond tool market is experiencing a profound paradigm shift driven by the rapid adoption of high-torque, brushless cordless angle grinders operating at speeds upwards of 11,000 RPM. Traditional abrasive wheels are rapidly being replaced by synthetic diamond cutting discs due to superior linear cutting velocity, operational safety, zero wheel degradation diameter, and exceptional total cost of ownership (TCO).
Furthermore, the surge in global architectural preferences toward ultra-compact sintered stone slabs (such as Neolith, Dekton, and Lapitec), dense porcelain tiles, and heavily reinforced high-PSI concrete has redefined performance metrics for angle grinder accessories. Procurement directors and industrial distributors can no longer rely on generic diamond discs. Modern job sites demand site-specific metallurgical matrix designs that balance diamond crystal friability, bond erosion rates, and thermal dissipation channels.
Deconstructing the physics of synthetic diamond crystals, matrix bond wear mechanics, and segment geometry optimization.
The performance of an angle grinder diamond disc relies on High Pressure High Temperature (HPHT) synthetic diamond crystals. Grit size (US Mesh) determines cut aggressiveness versus edge cleanliness. Coarse grits (30/40 Mesh) maximize material removal in green concrete, whereas fine grits (60/80 to 100/120 Mesh) are engineered for chip-free cutting of vitrified ceramic and ultra-thin sintered stone.
The metal matrix—composed of sintered Cobalt (Co), Copper (Cu), Nickel (Ni), Tin (Sn), and Tungsten Carbide (WC)—acts as a controlled wear mechanism. The bond must erode at a rate precisely synchronized with diamond crystal dulling, continually exposing fresh, sharp diamond cutting edges. Soft bonds cut hard substrates like quartz; hard bonds withstand highly abrasive soft sandstone.
JIAYAN utilizes advanced Hot-Pressed Sintering for continuous rim and turbo discs to achieve high density and uniform diamond distribution. For heavy-duty industrial applications, full-penetration Laser Welding fuses the diamond segment directly to the 65Mn alloy steel core, delivering shear strength values exceeding EN 13236 standards for dry angle grinding safety.
Engineering guidelines for selecting the optimal disc geometry, bond hardness, and rotational parameters for angle grinders.
| Target Substrate | Recommended Disc Type | Segment Geometry | Bond Hardness | Optimum Linear Speed | Max Safe RPM (115/125mm) |
|---|---|---|---|---|---|
| Sintered Stone / Dekton | Ultra-Thin J-Slot Continuous Rim | Micro-Mesh J-Slot (1.0–1.2mm) | Medium-Soft Bronze Matrix | 35 – 45 m/s | 13,300 RPM |
| Hard Granite (Class IV/V) | Turbo Segmented Disc | Wave Segment / Cooling Holes | Soft Cobalt-Iron Alloy | 40 – 60 m/s | 12,200 RPM |
| Porcelain & Ceramic Tiles | Super-Fast Mesh Continuous Rim | Super-Thin Rim (1.2mm) | Medium Bronze-Tin Matrix | 30 – 50 m/s | 13,300 RPM |
| Reinforced Concrete / Rebar | Laser-Welded Keyhole Segmented | Deep Keyhole Slots (10-12mm Seg.) | Hard Tungsten-Cobalt Matrix | 50 – 80 m/s | 12,200 RPM |
| Calcite Marble & Travertine | Electroplated / Vacuum Brazed | Continuous Exposed Diamond | Rigid Nickel-Chromium Matrix | 25 – 40 m/s | 11,000 RPM |
*Note: Linear Peripheral Speed formula $V = \frac{\pi \cdot D \cdot RPM}{60000}$ m/s. Operating within recommended velocity ranges prevents segment glazing and extends total diamond cutting life by up to 45%.
As an active member of the China Superhard Material Association based in Wuhu, China, JIAYAN delivers export-grade cutting tools backed by rigorous laboratory testing.
State-of-the-art computer-controlled hot press sintering machinery ensures zero internal porosity, exact segment density, and absolute consistency across multi-thousand unit orders.

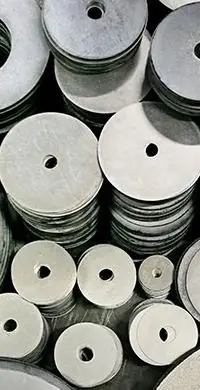

100% of core blanks undergo dynamic balance stress calibration to eliminate high-RPM vibration. Tensile shear tests confirm welding integrity exceeds EN 13236 safety standards.

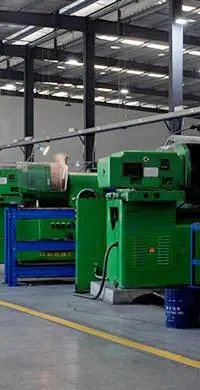

Monthly capacity exceeding 500,000 diamond cutting discs. Flexible private label customization, laser branding, bore resizing, and custom blister packaging for global importers.
Real-world performance verification across varied job-site environments and extreme material conditions.
Challenge: Cutting 12mm-20mm engineered sintered stone slabs with zero micro-chipping on 45-degree mitered edges using 125mm handheld angle grinders.
Solution: Implementation of JIAYAN’s 1.2mm Ultra-Thin J-Slot Continuous Rim Blade featuring a specialized bronze-tin matrix and fine 100/120 mesh diamond concentration. Resulted in pristine edge finishes without requiring secondary polishing.
Challenge: Rapid dry-cutting of Class IV abrasive granite curbing under high ambient temperatures (>45°C) leading to frequent core warping and segment loss.
Solution: Deployment of 230mm Laser-Welded Wave-Segmented Blades with keyhole thermal dissipation slots. The high-cobalt matrix retained diamond grains under intense thermal friction, extending tool life by 38%.
Challenge: Heavy plunge cutting through 4000 PSI concrete embedded with 12mm steel rebar using high-amp corded angle grinders.
Solution: Heavy-duty Laser-Welded Segmented Blade incorporating titanium-coated diamond grit and tungsten carbide anti-undercut segments to protect steel core from abrasive slurry wear.
Streamlined OEM/ODM partnership workflows for global wholesalers, hardware brand owners, and industrial distributors.
We assist global procurement teams in evaluating cost-per-meter cut rather than upfront blade price. Our custom bond matching lowers total labor downtime and reduces disc consumption by up to 30% on industrial construction sites.
From custom core color coatings and automated fiber-laser etching of brand logos to compliant barcode packaging and customized blister packaging, JIAYAN offers end-to-end white-label manufacturing services.
All export shipments are protected with Vapor Corrosion Inhibitor (VCI) anti-rust treatments and double-wall reinforced corrugated export master cartons, engineered for intermodal container transit and long-term warehousing.
Pioneering research and development vectors in superhard material synthesis and low-noise blade design.
Transitioning from random diamond distribution to 3D computerized grid placement of diamond grains. This ensures uniform wear across every individual segment, boosting cutting speeds by 35% and extending blade lifespan.
Integration of acoustic-damping copper/viscoelastic foil sandwiched between two hardened steel core sheets. Reduces operational angle grinder decibel levels by up to 15 dB, meeting stringent European urban noise standards.
Developing next-generation iron-copper-nickel sintered matrices to replace pure cobalt. Fully compliant with EU REACH environmental regulations while eliminating heavy metal exposure during dry grinding operations.
Stay informed with technical research articles and global exhibition updates from JIAYAN Superhard Tools.
JIAYAN Superhard continuously engages with global ceramic, stone, and hardware professionals at major trade fairs including TECNARGILLA Rimini (Italy) and the China International Exhibition for Ceramic Technology & Equipment (Guangzhou).
Our in-house R&D lab publishes regular empirical studies on laser welding tensile shear strength evaluation, dynamic balance calibration, and segment matrix wear patterns to guide international distributors.
Comprehensive testing protocol covering visual micro-inspection, metallographic examination of the melt zone, and destructive torque-shear testing.
Read Full Article ➔Showcasing next-generation hot-pressed continuous rim blades and ultra-thin ceramic cutting discs at the Canton Fair Complex, Guangzhou.
Read Full Article ➔Exhibiting specialized diamond cutting solutions for European porcelain slab fabricators in Rimini, Italy.
Read Full Article ➔Expert answers addressing technical safety, blade glazing, speed calculations, and B2B sourcing protocols.
Select from JIAYAN's certified superhard cutting product line designed for professional stone and ceramic fabricators.
